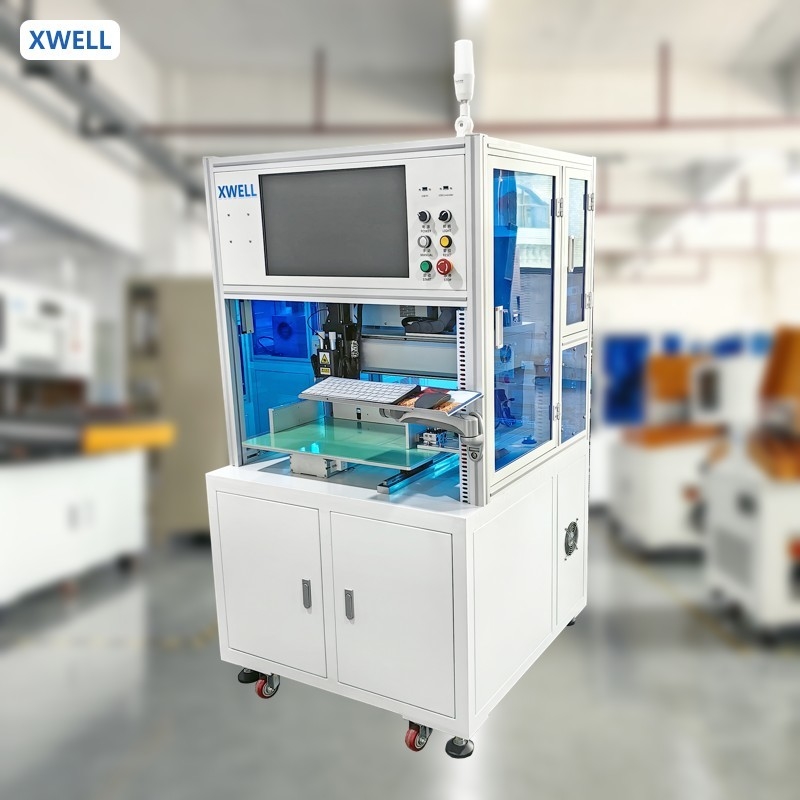

Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | XWELL |
| Certificering: | CE |
| Modelnummer: | MD-ADW |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stks |
|---|---|
| Prijs: | USD 11000 - 15000 / pcs |
| Verpakking Details: | Houten kist |
| Levertijd: | 10-15 dagen |
| Betalingscondities: | T/T, Western Union, L/C |
| Levering vermogen: | 100 stcs per maand |
|
Gedetailleerde informatie |
|||
| Types batterijen: | Cilindrische cel | Hoofd nummer: | 2 pc's |
|---|---|---|---|
| Besturingssysteem: | Ingebed Systeem | Gebruikersinterface: | Aanraakscherm |
| Stroombron: | 5000A / 8000A / 10000A optioneel | Efficiëntie: | 3800 stuks/uur |
| Vervaardiging: | 500*350 (mm) ongeveer 760 18650 cellen | Maximaal laadvermogen: | 200-400 stuks ((standaard 18650 lithiumbatterie) |
| Besturingssysteem: | ingebouwde systeem + mens-machine scherm | Transmissiemodus: | stap + riem + geïmporteerde precieze lineaire geleidingsrail (optioneel servo + schroef) |
| Markeren: | 18650 battery spot welding machine,automatic cylindrical battery welder,single-side lithium battery welder |
||
Productomschrijving
Automatic 18650 Battery Cells Single-Side Spot Welding Machine For Cylindrical Battery Pack Assembly
Product description:
The machine is suitable for automatic 18650 battery cells single-side spot welding of nickel strips in cylindrical battery components, the highly automated human-machine interface makes it very easy to operate. Through manual loading and simple settings, the battery pack welding process can be completed, and to ensure that the welding tension band or nickel between the battery and the nickel strips is greater than 30N.
Scope of application:
Automatic 18650/ 21700/ 26650/ 32650 cylindrical battery pack single-side spot welding machine for battery assembly, it is suitable for energy storage battery, electric bicycle batteries, power battery…
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
