Automatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | XWELL |
| Certificering: | CE |
| Modelnummer: | MD-ADW |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stks |
|---|---|
| Prijs: | USD 11000 - 15000 / pcs |
| Verpakking Details: | Houten kist |
| Levertijd: | 10-15 dagen |
| Betalingscondities: | T/T, Western Union, L/C |
| Levering vermogen: | 100 stcs per maand |
|
Gedetailleerde informatie |
|||
| Types batterijen: | Cilindrische cel | Hoofd nummer: | 2 pc's |
|---|---|---|---|
| Besturingssysteem: | Ingebed Systeem | Gebruikersinterface: | Aanraakscherm |
| Stroombron: | 5000A / 8000A / 10000A optioneel | Efficiëntie: | 3800 stuks/uur |
| Vervaardiging: | 500*350 (mm) ongeveer 760 18650 cellen | Maximaal laadvermogen: | 200-400 stuks ((standaard 18650 lithiumbatterie) |
| Besturingssysteem: | ingebouwde systeem + mens-machine scherm | Transmissiemodus: | stap + riem + geïmporteerde precieze lineaire geleidingsrail (optioneel servo + schroef) |
| Markeren: | automatic rotary spot welder for 18650 battery,numerical control spot welding machine for 21700 battery,single-side lithium battery spot welder with warranty |
||
Productomschrijving

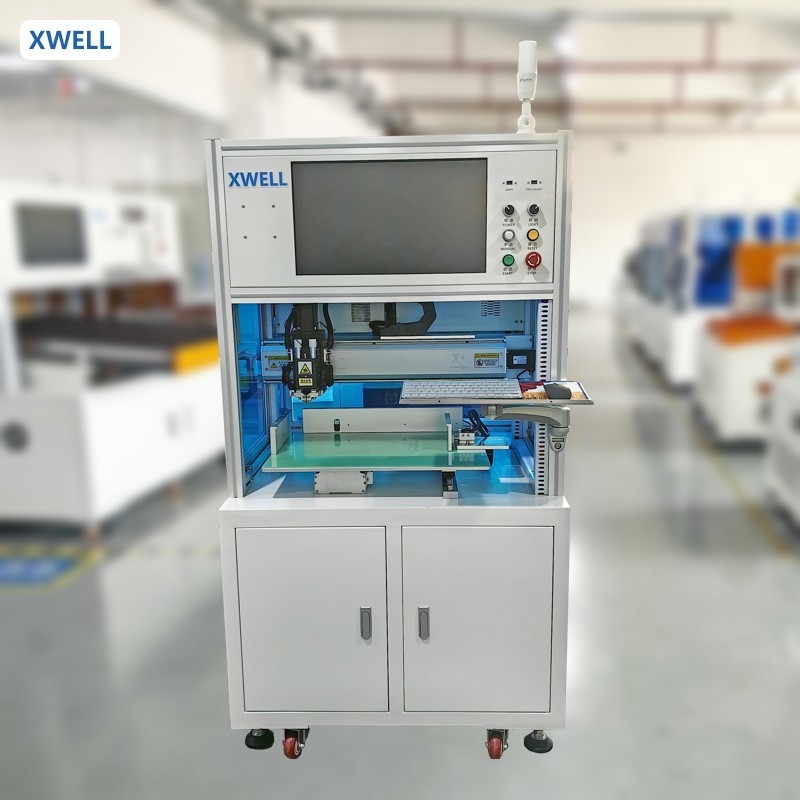

Automatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
Products Description
MD-ADW is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700/33140 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features
This equipment is mainly used for single-side and double-spot welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
