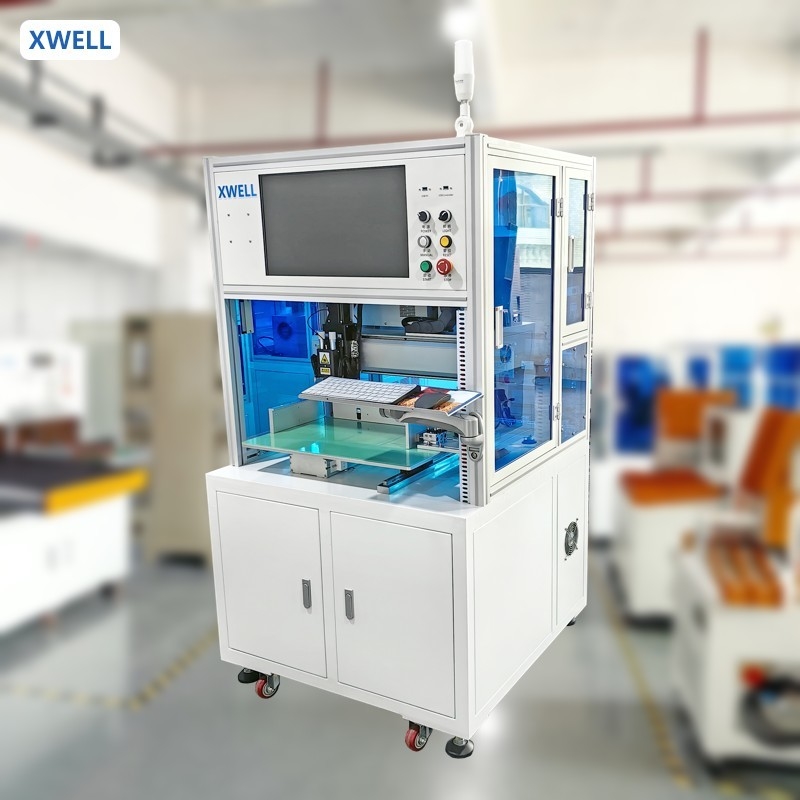

5000A Electric Spot Welder 18650 21700 Automatic Battery Spot Welding Machine
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | XWELL |
| Certificering: | CE |
| Modelnummer: | MD-ADW |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stks |
|---|---|
| Prijs: | USD 11000 - 15000 / pcs |
| Verpakking Details: | Houten kist |
| Levertijd: | 10-15 dagen |
| Betalingscondities: | T/T, Western Union, L/C |
| Levering vermogen: | 100 stcs per maand |
|
Gedetailleerde informatie |
|||
| Productoorsprong: | China | Hoofd nummer: | 2 pc's |
|---|---|---|---|
| Besturingssysteem: | Ingebed Systeem | Gebruikersinterface: | Aanraakscherm |
| Stroombron: | 5000A / 8000A / 10000A optioneel | Efficiëntie: | 3800 stuks/uur |
| Vervaardiging: | 500*350 (mm) ongeveer 760 18650 cellen | Maximaal laadvermogen: | 200-400 stuks ((standaard 18650 lithiumbatterie) |
| Besturingssysteem: | ingebouwde systeem + mens-machine scherm | Transmissiemodus: | stap + riem + geïmporteerde precieze lineaire geleidingsrail (optioneel servo + schroef) |
| Markeren: | 5000A lithium battery spot welder,automatic 18650 spot welding machine,21700 battery spot welder with warranty |
||
Productomschrijving
5000A Electric Spot Welder 18650 21700 Automatic Battery Spot Welding Machine
Description
Automatic battery spot welding machines play a key role in cylindrical battery pack assembly lines. When multiple cells are connected in series or in parallel to form a battery pack, the spot welding machine can quickly and accurately weld the tabs of the battery cells to the connecting pieces (such as nickel sheets), thereby forming a battery pack with a specific voltage and capacity to meet the power requirements of various applications.
Features
- Support breakpoint start, automatic start, and manual start.
- Cold solder joint and sealing off alarm.
- Easy program, support matrix, array and point program, can store 100 group parameters.
- Welding needle abrasion alarm.
- Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
- lithium battery packs spot welding.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
