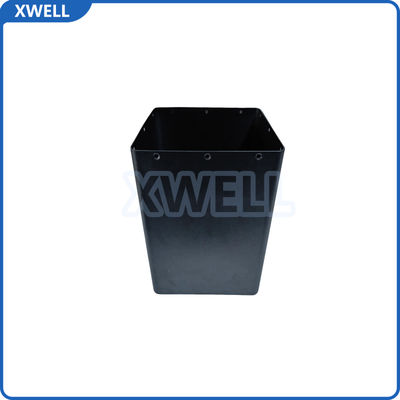

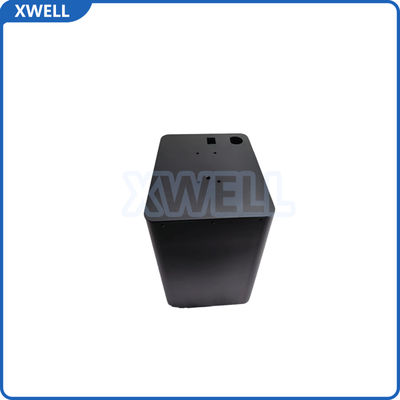

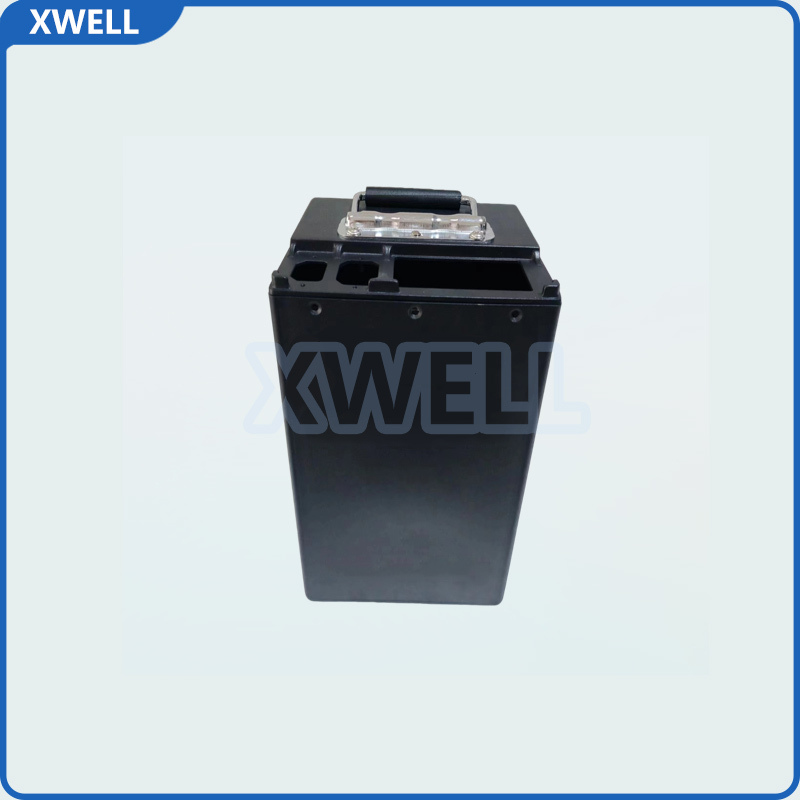

Zero-Weld Metal Box with 0-Weld Integrated Stretch Molding and IP54/IP65 Waterproof & Dustproof for Customizable Battery Pack Cases
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | XWELL |
| Certificering: | CE |
| Modelnummer: | Batterijpakket |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 10 -stcs |
|---|---|
| Prijs: | USD $1~$1000 |
| Verpakking Details: | KARTON |
| Levertijd: | 5-7 dagen |
| Betalingscondities: | T/T, Western Union, L/C, D/A, D/P |
| Levering vermogen: | 10000 pc's per maand |
|
Gedetailleerde informatie |
|||
| Batterijgrootte: | Aanpasbaar | Uitgangsvermogen: | 1 kWh, 2 kWh |
|---|---|---|---|
| Batterijtype: | Prismatisch, cilindrisch | Materiaal: | Ijzer |
| Dikte: | Aanpasbaar | Maat: | Aanpasbaar |
| Markeren: | 0-Weld Integrated Stretch Molding Battery Pack Case,IP54/IP65 Waterproof & Dustproof Battery Enclosure,Customizable Size Zero-Weld Metal Box |
||
Productomschrijving
As a core battery raw material, our Zero-Weld Metal Box for Battery Pack is engineered to solve pain points of traditional welded battery cases—such as poor sealing, weak structural durability, and short service life. It adopts an integrated stretch molding process to achieve a seamless 0-weld structure, making it ideal for lithium-ion, LiFePO4, and other battery pack applications in electric vehicles, energy storage systems, portable electronics, and outdoor equipment.
| Advantage Category | Key Feature | Buyer Benefit |
|---|---|---|
| Structural Durability | 0-weld integrated stretch molding; no welding seams | Eliminates seam leakage/breakage risks, boosts overall durability by 35% vs. welded cases |
| Protection Performance | IP54/IP65 waterproof & dustproof (customizable to IP67) | Shields internal batteries from moisture, dust, and debris—suitable for outdoor/harsh environments |
| Material Quality | High-grade carbon steel (SPCC) / aluminum alloy (6061-T6) / stainless steel 304 (optional) | Resists corrosion and impact; maintains shape under -20℃ to 85℃ temperature fluctuations |
| Thermal Management | Smooth metal surface + optional internal heat-dissipating fins | Enhances heat dispersion by 25%, preventing battery overheating and extending service life |
| Specification | Details | Customization Range |
|---|---|---|
| Compatible Voltage | 12V, 24V, 48V, 60V, 72V (mainstream) | 6V - 96V (per battery pack needs) |
| Material Thickness | 1.0mm - 2.5mm (standard) | 0.8mm - 3.0mm (adjustable for weight/protection needs) |
| Size Range | Length: 180mm - 550mm Width: 100mm - 280mm Height: 60mm - 180mm |
Fully customizable (based on battery pack dimensions) |
| Surface Treatment | Electroplating, powder coating, brushed finish (standard) | Anti-fingerprint coating, anti-corrosion plating (optional) |
| Mounting Design | Pre-drilled M4/M5 threaded holes | Custom hole positions/sizes for easy installation |
| Certifications | CE, RoHS | REACH, UL (available for North American/European markets) |
Our Zero-Weld Metal Box is a versatile battery raw material for multiple industries, solving packaging challenges in different use cases:
- Electric Mobility: E-bikes, e-scooters, three-wheeled EVs, golf carts (resists riding bumps and rain)
- Energy Storage: Home solar storage systems, industrial backup batteries (withstands long-term outdoor placement)
- Portable Electronics: Medical devices (blood glucose meters), outdoor LED lights, camping gear (compact and dustproof)
- Industrial Equipment: Electric forklifts, warehouse AGVs (heavy-duty material resists mechanical impact)
- Cost-Saving for Long Term: The 0-weld structure reduces maintenance costs caused by seam damage, and the durable material extends the box's service life by 2-3 years vs. ordinary cases.
- Low MOQ & Fast Customization: We support MOQ as low as 50 units, and custom samples can be delivered within 7-10 days—perfect for small-batch trials or large-scale production.
- Global Compliance: Certifications like CE and RoHS ensure smooth customs clearance for markets in Europe, Southeast Asia, and North America.
If you need to match the box to your specific battery pack specs (e.g., voltage, size, or protection level), our engineering team will provide free design recommendations. Contact us today for a detailed quote or to request a sample!
