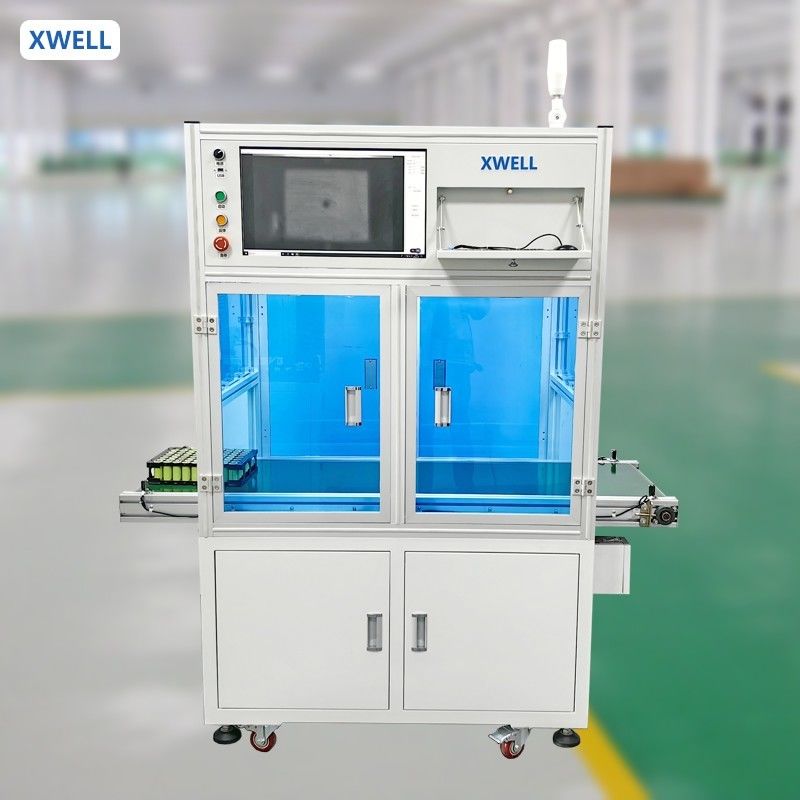

Cylindrical Battery Positive And Negative Visual Inspection Machine
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | XWELL |
| Certificering: | CE |
| Modelnummer: | XW-CCD |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 pc's |
|---|---|
| Prijs: | USD3000-5000/PCS |
| Verpakking Details: | Houten doos |
| Levertijd: | 5-20 dagen |
| Betalingscondities: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Levering vermogen: | 20 stuks per maand |
|
Gedetailleerde informatie |
|||
| Naleving: | CE gecertificeerd | Doorlooptijd: | 7 dagen |
|---|---|---|---|
| Testsnelheid: | 0.1-500mm/min | Werkspanning: | AC 220V 50 Hz~60 Hz |
| Routebeschrijving: | 200 mm | Controlemethode: | Computerbesturing |
| Spanningsbereik: | 0-150V | Laadstroom: | 20a |
| Duurzaam laadvermogen: | 6 kW | Gegevensuitvoer: | EXCEL,TXT |
| Testtemperatuur: | 130C+2,0°C;(Test zonder belasting) | Minimale luchtdruk: | 5.0kpa |
| Communicatie-middelen: | TCP/IP protocol | Elektrische asstraling: | ≥450mm |
| Markeren: | cylindrical battery inspection machine,battery pack visual tester,positive negative battery inspection |
||
Productomschrijving
Cylindrical Battery Positive And Negative Visual Inspection Machine
Configuration parameters
- Equipment power: 600W, 220V AC input, 50HZ
- The position of NG can be used to confirm the positive and negative electrodes of the battery pack before the spot welding, and prevent the defects caused by the wrong positions of the positive and negative electrodes.
- Adaptable cell range: cylindrical cell 14430/14500/18500/ 18650/21700/26650/32650/32700 etc.
- 2.4 Adapt to the detection range: 400*300MM(customizable).
- After the sample(Template) is saved, it can be rotated 360 degrees for position detection.
- After the parameters are set, start the detection mode with one key.
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
Details:
