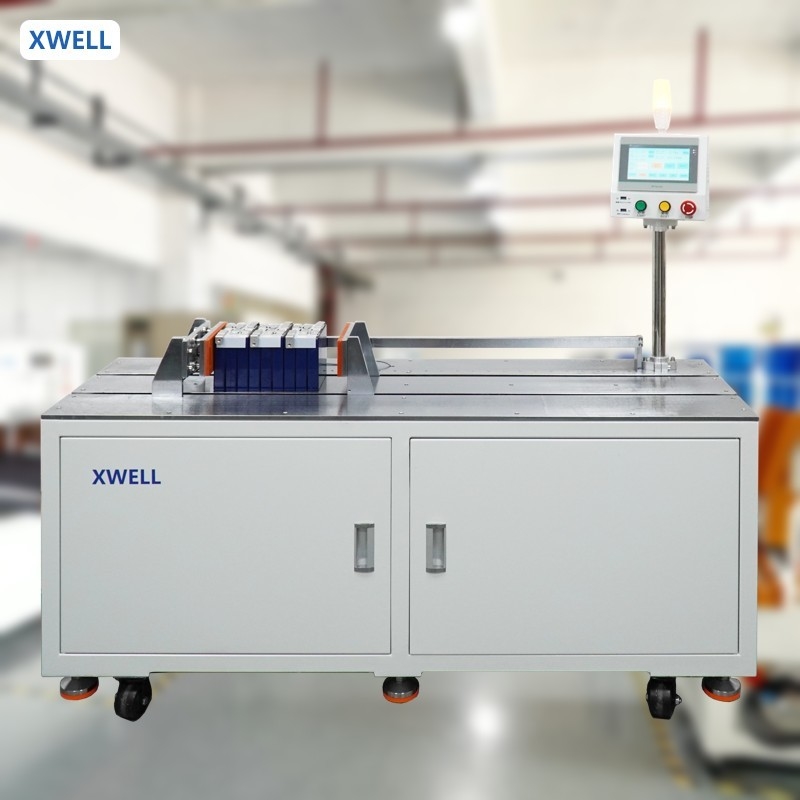

Prismatic Lithium Battery Cell Stacking Machine

Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years of experience in the new energy battery industry. To create more economic value and offer one-step service, we combine all knowledge and resources to provide complete solutions in the battery industry, including battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machines, plastic ultrasonic welding machines, metal ultrasonic spot welding machines, wire ultrasonic welding machines, and most accessories. We have exported to over 60 countries worldwide in the past 10 years and have passed CE safety certification. With rich technology and capital resources, we emphasize new product innovation, introducing at least one new machine design annually. Creating value for customers first is our path to achieving self-worth. We look forward to cooperating with you!

Description

XW-PC12 is for prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape and bundling machine. It adopts servo motor+screw module+planetary reducer for stacking and extruding, controlled by pressure controller, the extrusion stacking thrust reaches more than 100KG, easy to operate, it can control the stacking and extruding stroke and stacking pressure in time, with the triple protection function of software limitation, hardware limitation, and pressure limitation, which won't be over-extruding the batteries and has high controllability in the precision of extruding.

Features

• 7-inch touch screen with PLC for control, easy to operate.
• Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type.
• Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG.
• Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy.
